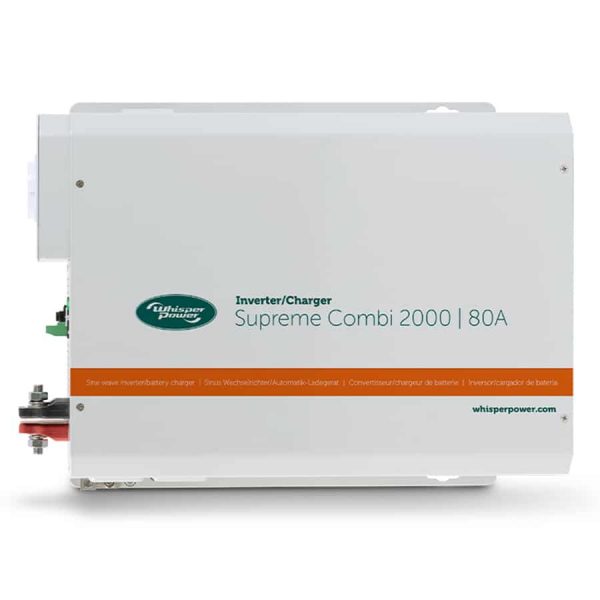

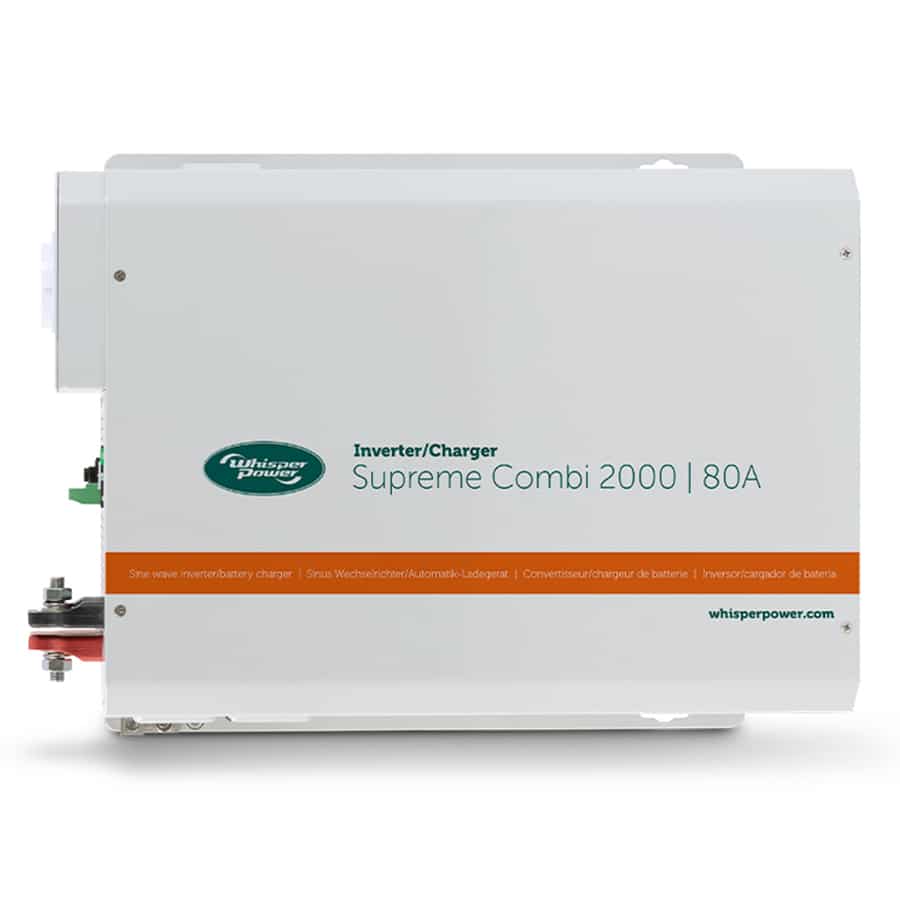

Bidirectional 2000W Sinewave Inverter with 80A Ba

Descriptions

Due to its efficient and compact design, the Supreme Combi inverter/charger is suitable for installation in tight spaces. This device provides all the required comfort expected on board of a vehicle or in a boat. All 120 AC appliances can be connected and work smoothly such as a computer, coffee machine, kettle, cooking appliances, fl at screens, etc. The built in multi-stage battery charger can be connected to a AC generator as well as the land connection.

Features / benefits

  • Convert 12 V battery power to alternating current(120 V, 60 Hz)
  • Sine wave output power is ideal for demanding electrical motors, sensitive electronics and rechargeable devices
  • Multi-stage charger ensures batteries are charged safely and efficiently
  • Suitable for microwaves, air-conditioning, computers, televisions, power tools and more
  • Detachable control display (Power Sharing)
  • Grid power control button
  • Ideal for self installation
  • WhisperConnect Can connection

Specifications

GENERAL DATA
Weight [lbs]

17.6

Dimension hxwxd [in]

15.4 x 11.9 x 4.2

INVERTER SPECIFICATIONS
Output Power (Continuous)

2000 W

Output Power (Peak)

4000 VA

Output (Voltage, Frequency)

120 VAC – 60 Hz

Output Current

8.6 A

Output Waveform

True Sine Wave (<3% THD)

Peak efficiency

>80%

DETACHABLE DISPLAY
Display Panel Port

RJ12

Inverter Mode

Input V/A, Output Power

Charger Mode

Status, Battery Voltage

Warning and Fault Code

Yes

LED Indicator

Yes (Status, Display)

BATTERY CHARGER
Charge Voltage Range

13.8 – 14.8 VDC

Float Voltage Range

13.0 – 14.4 VDC

Charger current (Maximum)

80 ADC

Charger current setting (Manuals / Auto)

80

Charge Control

Bulk / Absorption / Float

Charging Battery Type

GEL, Flooded, AGM, Lithium, Programmable, Power Supply

AC Input Voltage / Frequency

120 VAC – 60 Hz
