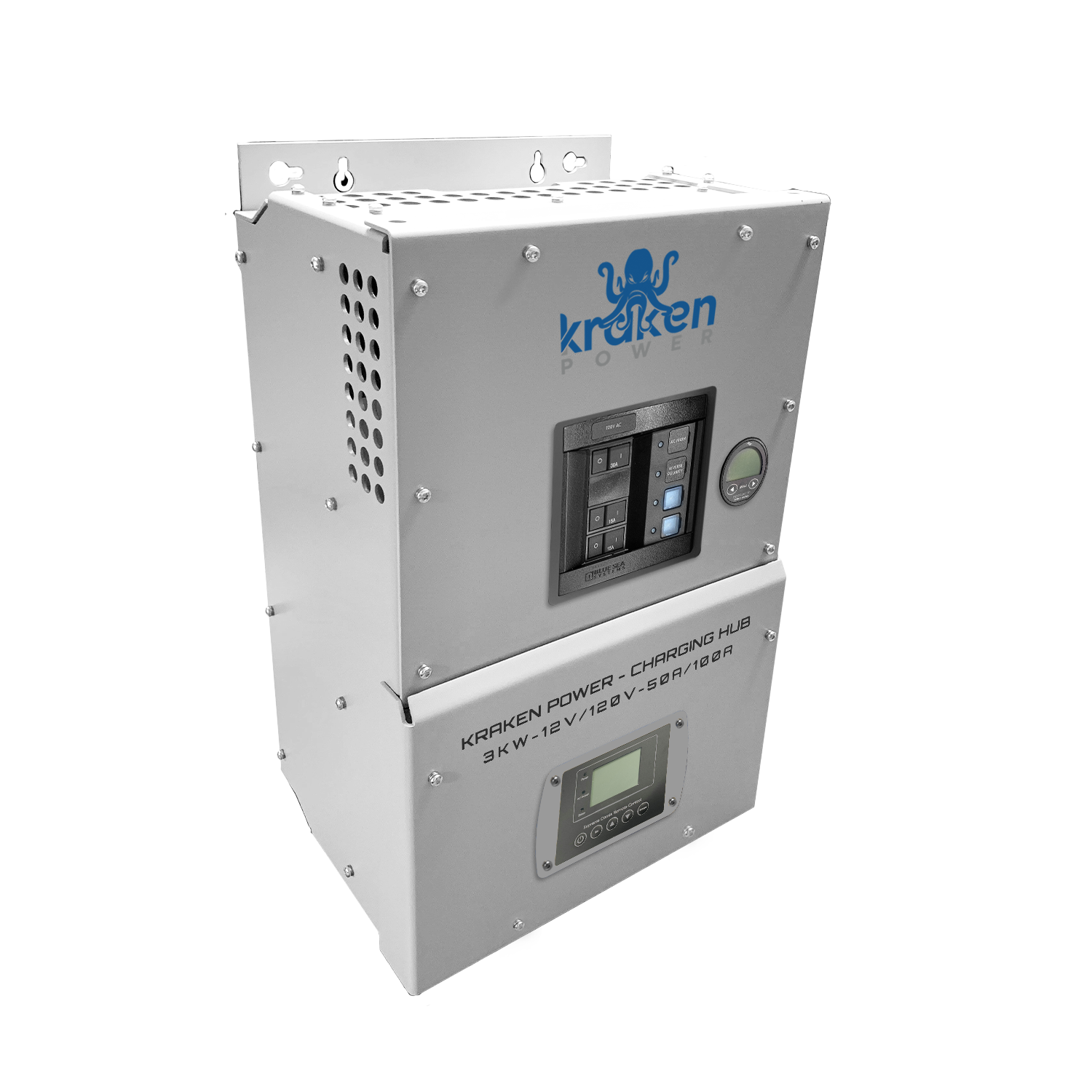

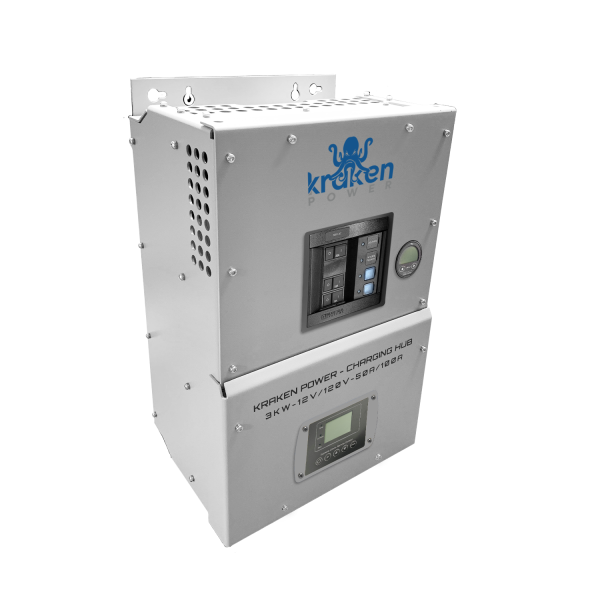

Kraken Charging Hub

-3000W/100A/50A 12V/100Ah

$6,889.00

Descriptions

KEEPING TOOLS CHARGED IS A CHALLENGE

  • MORE ELECTRIFICATION MEANS MORE BATTERIES, MORE CHARGERS.
  • ELECTRICAL LOAD REQUIREMENTS ARE NOT CONSIDERED WHEN BUYING TOOLS.
    • MOST TOOL MANUFACTURERS DO NOT EVEN PUBLISH REQUIRED INPUT POWER (WATTS).
  • SHORE POWER IS LIMITED.
  • TOOL UPGRADES TO BATTERY POWER SHOULD INCLUDE APPARATUS ELECTRICAL SYSTEM UPGRADE.

WHAT’S THE POINT?

  • MOST BATTERY TOOLS ARE PLUGGED INTO AC OUTLETS WHICH ARE ONLY LIVE WHEN APPARATUS IS PLUGGED I NTO SHORE POWER.
    • DEPARTMENTS OFTEN HAVE <1 HOUR OF “CHARGE TIME” BETWEEN CALLS
    • COMMON BATTERY PACKS IN FIRE SERVICE REQUIRE >3 HOURS TO CHARGE
    • MAINTAINING FULL CHARGE OF ALL PACKS IS INCREASINGLY DIFFICULT AS MORE BATTERY TOOLS ARE ACQUIRED.
  • INSTEAD OF LIMITING TOOL RECHARGE TO SHORT IN-STATION TIME, SETUP CONTINUOUS ONBOARD AC TO SPREAD LOAD THROUGHOUT DAY.

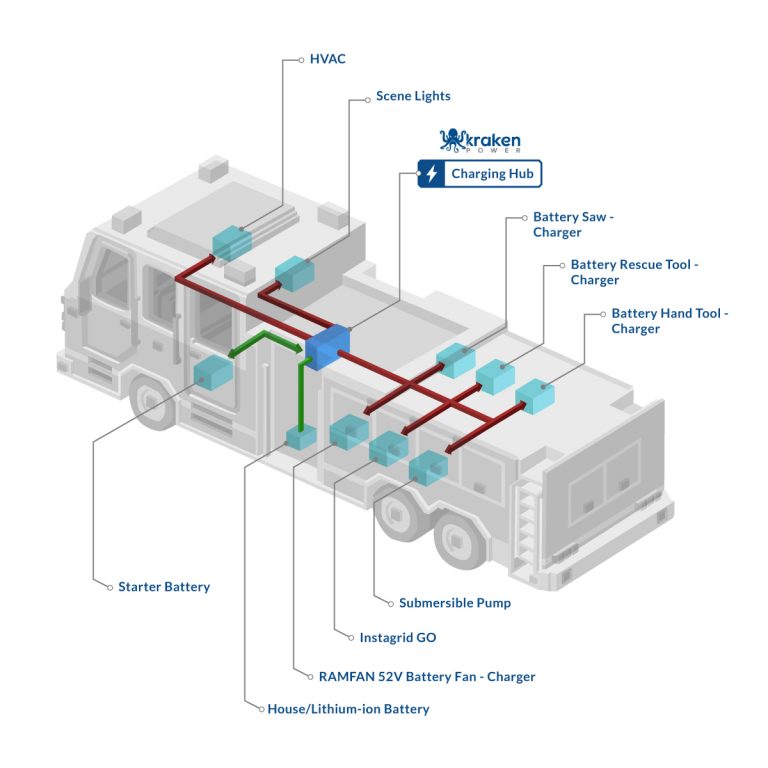

WHY APPARATUS CAN’T PROVIDE ENOUGH CHARGING POWER

Most fire apparatus are built with low-voltage electrical systems (12V) to power basic equipment (i.e. lights, low power chargers).

As more battery tools are acquired, the apparatus electrical system must be capable of charging tool batteries fast enough to stay fully charged and in service.

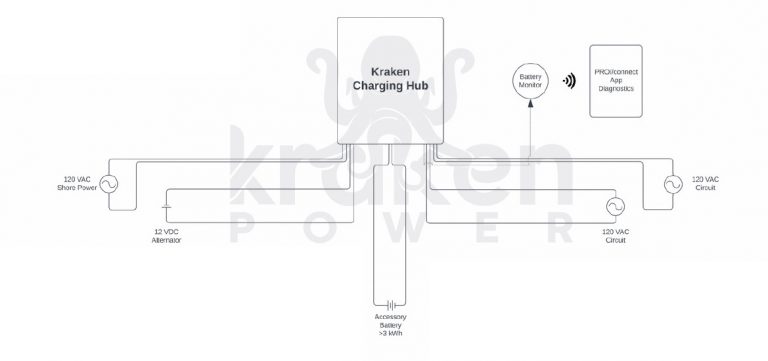

WHAT IS A KRAKEN POWER CHARGING HUB?

  • CHARGING HUBS PROVIDE CONTINUOUS ONBOARD AC POWER, INSTEAD OF TRYING TO CHARGE EVERYTHING IN THE SHORT TIME THE APPARATUS IS PLUGGED INTO SHORE POWER.
    • BATTERY TOOL CHARGING HUBS HELP TO SPREAD THE LOAD OF TOOL CHARGING OVER TIME, STARTING WHEN THE DEPLETED BATTERY IS PLACED ON ITS CHARGER.
  • STORE ENERGY AND TAKE IT WITH YOU.
    • CHARGE TOOL BATTERIES CONTINUOUSLY, FROM INVERTER AND LITHIUM BATTERY BANK.
      DEDICATE SHORE POWER TO RECHARGING TRUCK BATTERIES.

Specifications

3 kW CHARGING HUB

CH3K10050-100 Kraken Charging Hub 3000W/100A/50A with 12V/100Ah

Sinewave Inverter / Charger

KP-BIC1230100

Output Power (Continuous)

3000 W

Output Power (Peak)

6000 W

Output (Voltage, Frequency)

120 VAC – 60 Hz

Output Current

13.0 A

Output Waveform

True Sine Wave (<3% THD)

Peak efficiency 90%
Charge Voltage Range

13.5 – 14.4 VDC

Float Voltage Range

13.4 – 13.8 VDC

Charger current (Maximum)

100 A

Charger current setting (Manuals / Auto)

5, 15, 35, 55, 75, 100

Weight [lbs] 75
Dimension hxwxd [in]

19.7 x 11.8 x 9.0

WP-Suntrack DUO 12V / 50A

WP-60111430

PV max open circuit voltage (VDC)

14.5 – 50 Vdc

Max PV input power

500W @12V – 750W @24V

Max MPPT current

30A

Dimension hxwxd [in]

9.52 x 6.77 x 2.91

100AH LITHIUM BATTERY

WP-40291202

Nominal voltage (V)

12,8 V

Charge cut off voltage

15,6 V

End charge voltage

14,6 VDC +- 0,2 V

Max charge current 1/c

100 A

Max float charge current

50A

Dimonsions w x d x h (in)

12 x 6 x 8

Smart Shunt

WP-40290313

Supply voltage range

7..70V dc

Supply current (@ 12V / 24V / 48V )

10mA / 6mA / 5mA

Input voltage range main battery (+B1)

7..70V dc1)

Input voltage range second and third battery (+B2, +B3)

1..70V dc

Input current range

-600..+600 A2)

Battery capacity range

10..10000 Ah

Shunt dimensions:

4 x 4

9 in

2.5 in

10.2 oz

Display dimensions:

Ø 2.5 in

Ø 2 in

1.4 in

2.4 oz
