Bidirectional 3000W Sinewave Inverter with 100A Ba

Descriptions

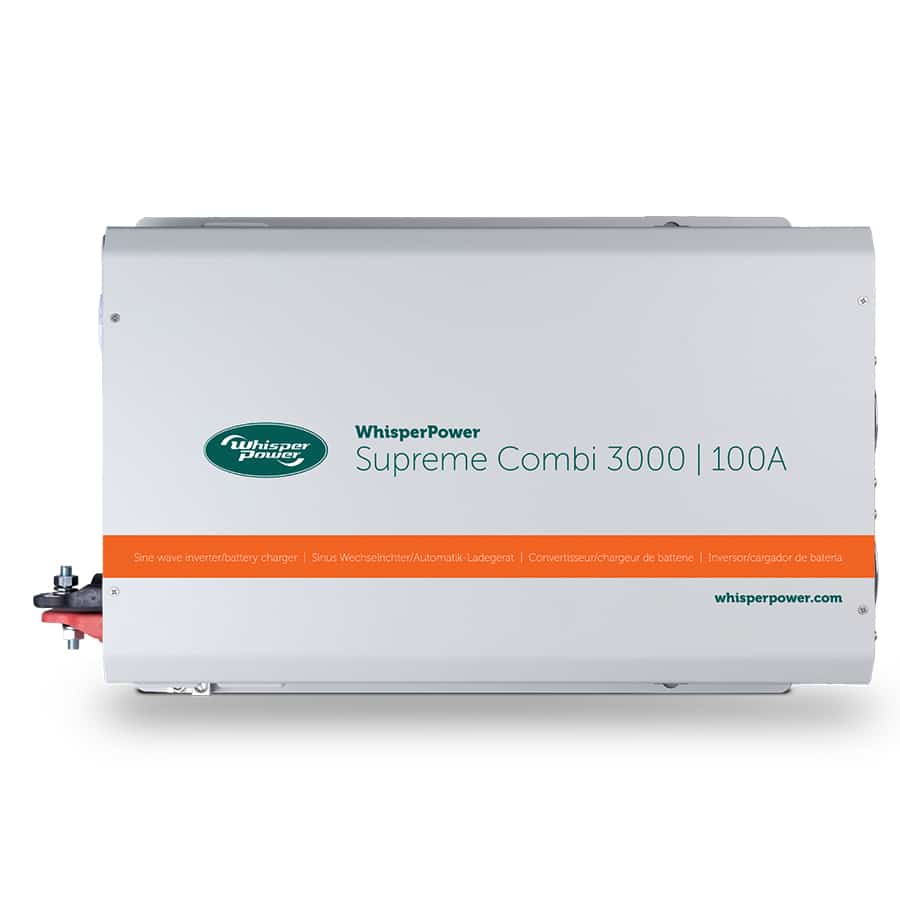

Due to its efficient and compact design, the Supreme Combi inverter/charger is suitable for installation in tight spaces. This device provides all the required comfort expected on board of a vehicle or in a boat. All 120 AC appliances can be connected and work smoothly such as a computer, coffee machine, kettle, cooking appliances, fl at screens, etc. The built in multi-stage battery charger can be connected to a AC generator as well as the land connection.

Features / benefits

  • Convert 12 V battery power to alternating current(120 V, 60 Hz)
  • Sine wave output power is ideal for demanding electrical motors, sensitive electronics and rechargeable devices
  • Multi-stage charger ensures batteries are charged safely and efficiently
  • Suitable for microwaves, air-conditioning, computers, televisions, power tools and more
  • Detachable control display (Power Sharing)
  • Grid power control button
  • Ideal for self installation
  • WhisperConnect Can connection

Specifications

INVERTER
AC output power 25oC (continuous)

3000 W

AC output current

13.0 A

AC peak power (2 sec

6000 VA

AC output voltage/Hz

120 V – 60 Hz

AC Voltage wave form

pure sine wave (<3% THD)

AC SWITCHING RELAY
Switching time

<30ms

Capacity switching relay

16 A

DISPLAY
Connection display

RJ12

Inverter info

input voltage, output power

Charger info

status, battery voltage

CHARGER
AC input voltage

120 VAC – 60Hz

Load Voltage Range

13.5 – 14.8 V DC

Float Voltage Range

13.4 – 14.4 V DC

Charge current (max)

100 ADC

Charge current settings

5, 15, 35, 55, 75, 100

Battery type

GEL, Flooded, AGM, Lithium, Programmable, Power Supply

Charge characteristics

bulk / absorption / float

Efficiency

>80%

SAFETY & ENVIRONMENT
Conformity marking

CE

Operating temperature

0°C to 40°C

Storage temperature

-20°C to 60°C

Relative humidity

5-90% non-condensing

Usage height

up to 3.000m above sea level

WEIGHT AND DIMENSIONS
Weight [lbs]

22.9

Dimensions [in]

19.7 x 12.1 x 4.2
