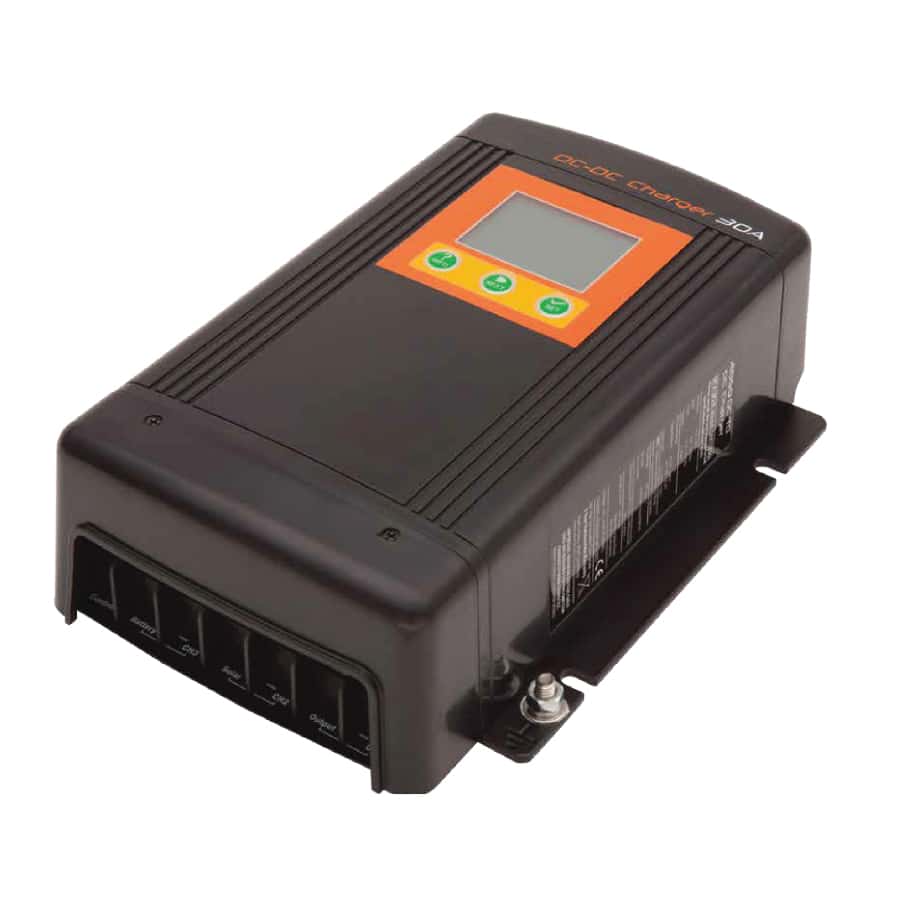

DC - DC Chargers

$299.99$349.99

Clear

Descriptions

In-Vehicle Optimal Charge and Maintenance for Auxiliary Batteries

Kraken Power DC to DC Chargers allow you to charge your household battery bank from a solar panel or from your engine battery – no need to wait until you connect to the grid. They provide dual input MPPT Solar input and Auxiliary battery input with maintenance-free protection for your batteries and solar panels. Smart, multi-stage charging ensures your batteries are charged the way the manufacturers recommend, resulting in maximized battery life. Compact design and small product footprint mean these chargers can be installed in tight areas. Easy-access connectors make installation a snap.

Product Features include:

  • Microprocessor controlled multi-stage charging algorithms: (Bulk, Absorption, Float) for Gel, AGM and Flooded batteries with equalization for Flooded batteries.
  • MPPT solar regulator provides maximum power from solar panels to battery.
  • Silent Mode for quiet operation.
  • Optional Remote for viewing system information and advanced program settings.

Specifications

DC-DC

DMT 1230

DMT 1250

DC Controller Output(Battery)
Output Current(Maximum)

30A

50A

Output Voltage Range:
Charge

13.5 – 15.5V

13.5 – 15.5V

Float

13.0 – 13.8V

13.0 – 13.8V

Equalize

15.5V

15.5V

Charging Control

5 stages (Test/Bulk/Absorption/Float/Recharge)

5 stages (Test/Bulk/Absorption/Float/Recharge)

DC Output Bank

One

One

Selectable Battery Type

Gel, AGM, Flooded, Lithium, Program

Gel, AGM, Flooded, Lithium, Program

Parasitic Current

< 10 uA

< 10 uA

Efficiency

> 90%

> 90%

DC Input(Battery/Alternator)
DC input Range

10.5 – 32Vdc

10.5 – 32Vdc

DC Input Nominal Operation

12.8V for 12V charging system

12.8V for 12V charging system

25.6V for 24V charging system

25.6V for 24V charging system

Engine Start Control:ON

DC input from Battery/Alternator

DC input from Battery/Alternator

Engine Start Contro:OFF

DC input from PV input (if available)

DC input from PV input (if available)

DC Input (PV Input)
DC Input Range

10 – 45 Vdc

10 – 45 Vdc

DC Input Nominal Operation

17.5Vdc for 12V PV panels connected in parallel

17.5Vdc for 12V PV panels connected in parallel

MPPT Tracking Eficiency

35.0Vdc for dual 12V PV panel connected in series

35.0Vdc for dual 12V PV panel connected in series
