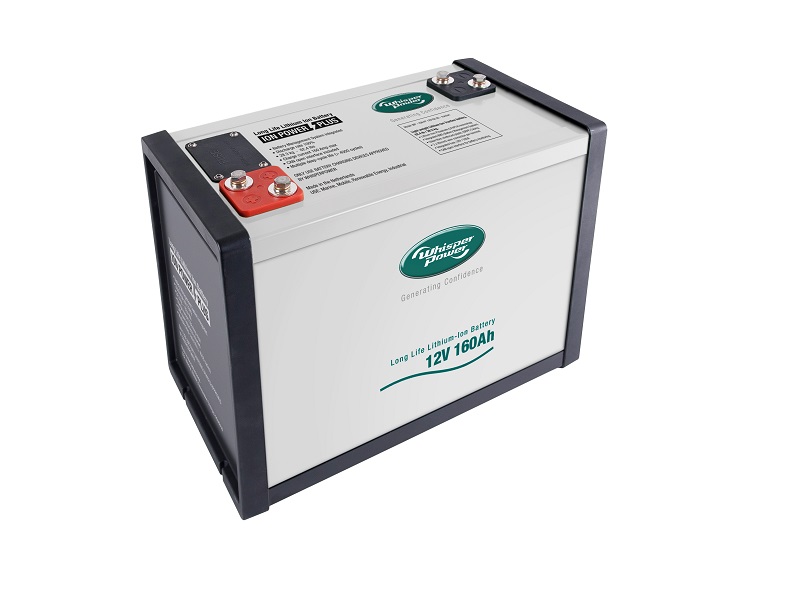

Ion Power Plus 12 V – 160 Ah

$2,403.70

Descriptions

  • High power density, only 25 kg
  • 12 V 160 Ah, Li Fe PO4
  • Can be discharged up to 100%
  • 5000 cycles at average use
  • Perfect for larger 12/24/48 VDC systems

Specifications

ARTICLE NUMBER
40290202

WP ION 12 V – 160 Ah

TECHNICAL SPECIFICATIONS
Height (mm)

313.00/314.00

Width (mm)

413.50 / 414.50

Nominal voltage (V)

13.2 V

Maximum voltage

15.4 VDC

End charge voltage

14.6 DC

Max charge current 100/c

160 A

Max float charge current

52 A

Minimum battery voltage

8 VDC

Minimum float charge

10 VDC

Max discharge current 3/C

480 A

Prolonged discharge current (max)

52 A

Pulsed discharge current (10 sec)

1280 A

Pulsed discharge current (60 sec)

800 A

Usable battery capacity at 20˚C

160 Ah / 2112 Wh

Usable battery capacity at – 20 ˚C

104 Ah / 1372 Wh

Usable capacity / in comparison to lead acid battery

320 Ah

Charge method

CCCV (Constant voltage)

Temperature range (charging)

0°C to 45°C

Temperature range (discharging)

-20°C to +60°C

Temperature range (storage)

-20°C to +60°C
