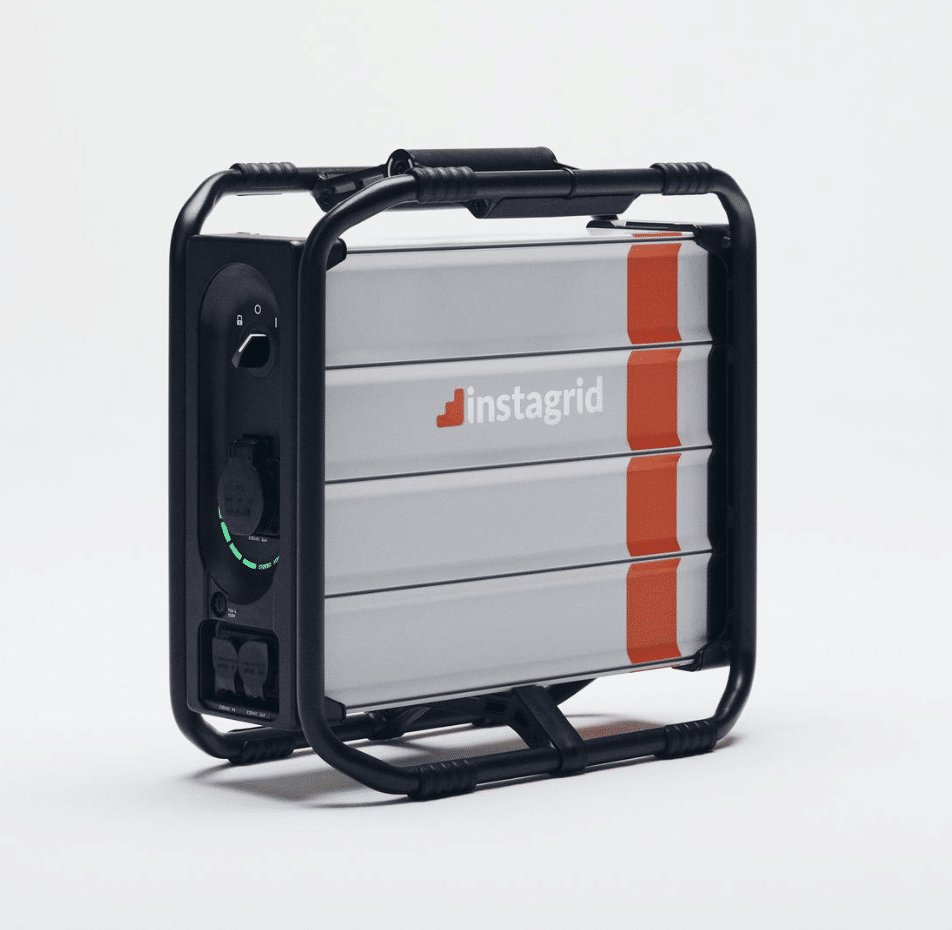

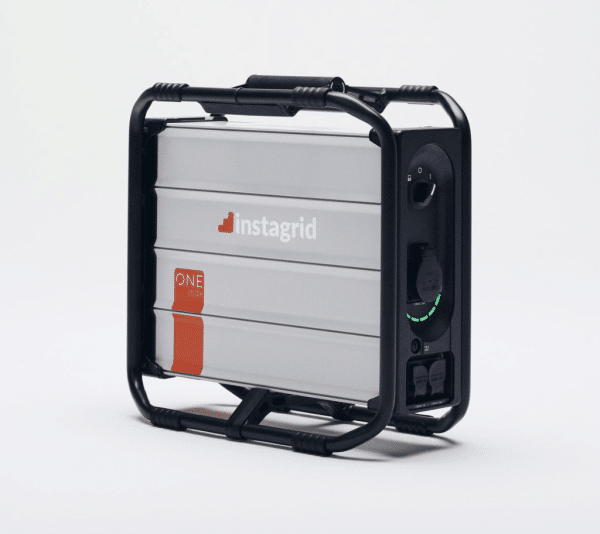

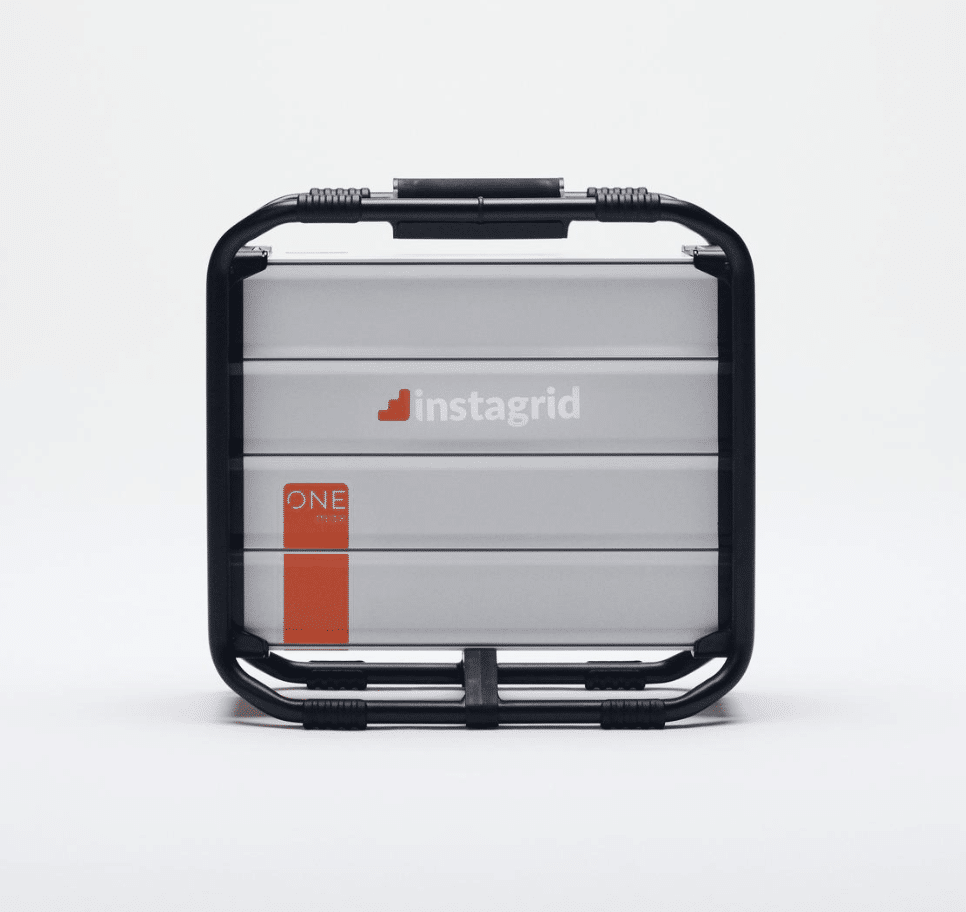

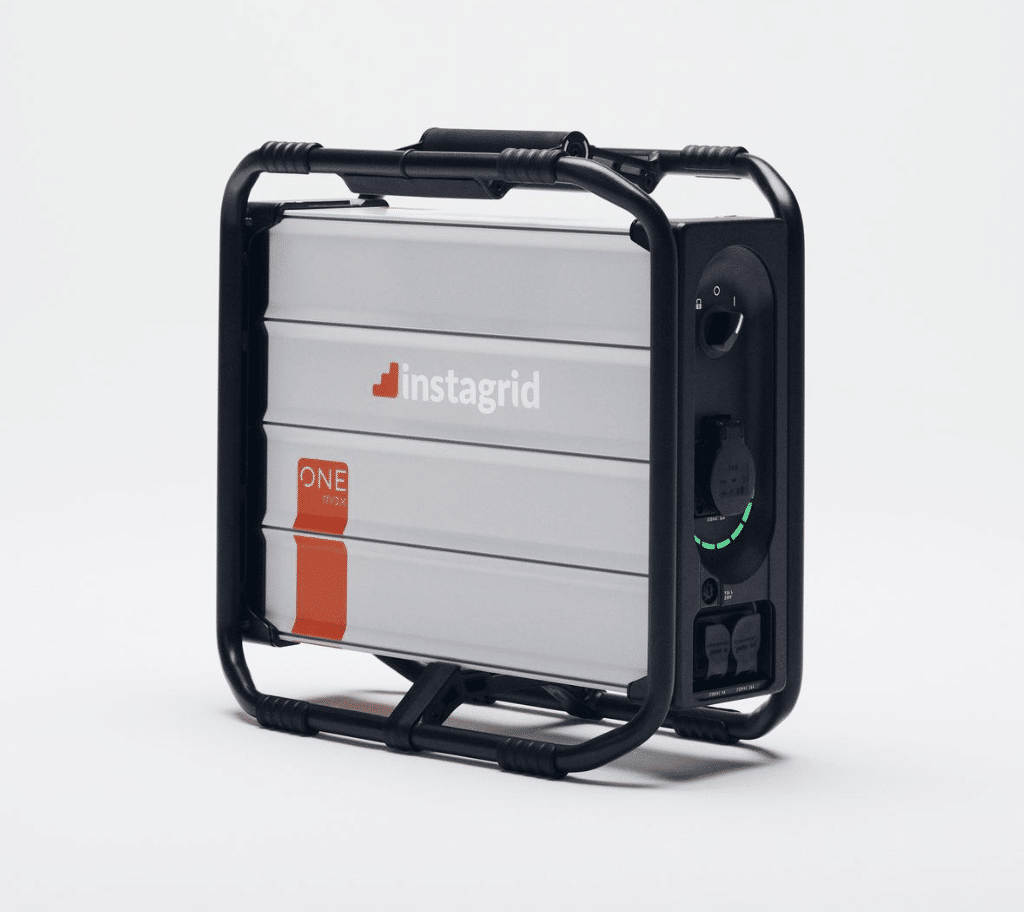

Instagrid GO

Descriptions

EXCEPTIONAL POWER COMPACT AND EASY

  • No Limits: If your device can be powered from a wall socket, it can be powered with Instagrid.
  • Plug and Play: No cables, no hassle. Just plug in your tool and get work done.
  • Truly Portable: Nothing this powerful has ever been so compact and lightweight.

POWER YOUR ENTIRE WORKDAY

  • Long runtime: With 2.1 kWh, Instagrid GO max delivers the most energy in a portable format.
  • See below what you can get done with one charge

DESIGNED FOR PROFESSIONALS

  • Robust and Efficient: Work under any conditions with Instagrid’s water and dust resistant system

CREATE AN OUTSTANDING EXPERIENCE FOR YOUR CUSTOMERS

  • Instagrid GO max is completely silent and has zero toxic fumes

FAST CHARGING

  • 2.5 hours: Short on time? You can charge the Instagrid system even in the middle of your workday

BETTER THAN THE GRID

  • 18.000 Watt Peak: With the Instagrid system you can power your most demanding devices up to 18.000 W peak.
  • 3.600 Watt Continuous: Power your tools with 3.600 W pure sine from fine electronics to welding.

ONE HANDED PORTABILITY

  • 20 kg: Nothing this powerful has ever come in this size

ENGINEERED AND DESIGNED IN GERMANY

  • Instagrid portable power system is precision manufactured to meet the highest quality standards

RECOGNIZED WITH INDUSTRY LEADING AWARDS

RAISING THE BAR ON SAFETY

  • No grounding required: Instagrid power system is designed according to IEC protection class II
  • No tripping hazards: Reduce cabling
  • No toxic fumes: Create a healthier work environment, work indoors and in closed spaces

Specifications

Part #: IG-901-00006
Parameter Value
Discharging
Output voltage 120VAC / 60Hz
Rated output power 3,600W (16A)
150% boost (>500s) 5,400W (24A)
200% boost (>50s) 7,200W (32A)
250% boost (>10s) 9,000W (40A)
Pulse Output 18,000 W (80 A)
Maximum short-circuit current 500A
On (idle) 150h
Circuit protection 16A – equivalent B16
Operating temperature -4˚F up to 60˚F
Mode of operation: Charging
Input voltage 120-240VAC / 50-60Hz
Rated power 500 – 1000W (4A)
complete charging process <0.5W
Charge duration < 3h up to 100%
Operating temperature 32˚F up to 113˚F
General
Battery Capacity 2,074 Wh
Weight 44 lbs
Dimensions 16.53 x 8.26 x 16.53 in
IP Class IP54+
Protection Class Class II / double insulated
Noise emission < 10 dB(A)
Storage > 3 years
Electric Connections
Output socket CEE 7/3 Socket (16A)
Output socket Neutrik powerCON TRUE1
Load Input Neutrik powerCON TRUE1
Input fuse T5A L 250V
