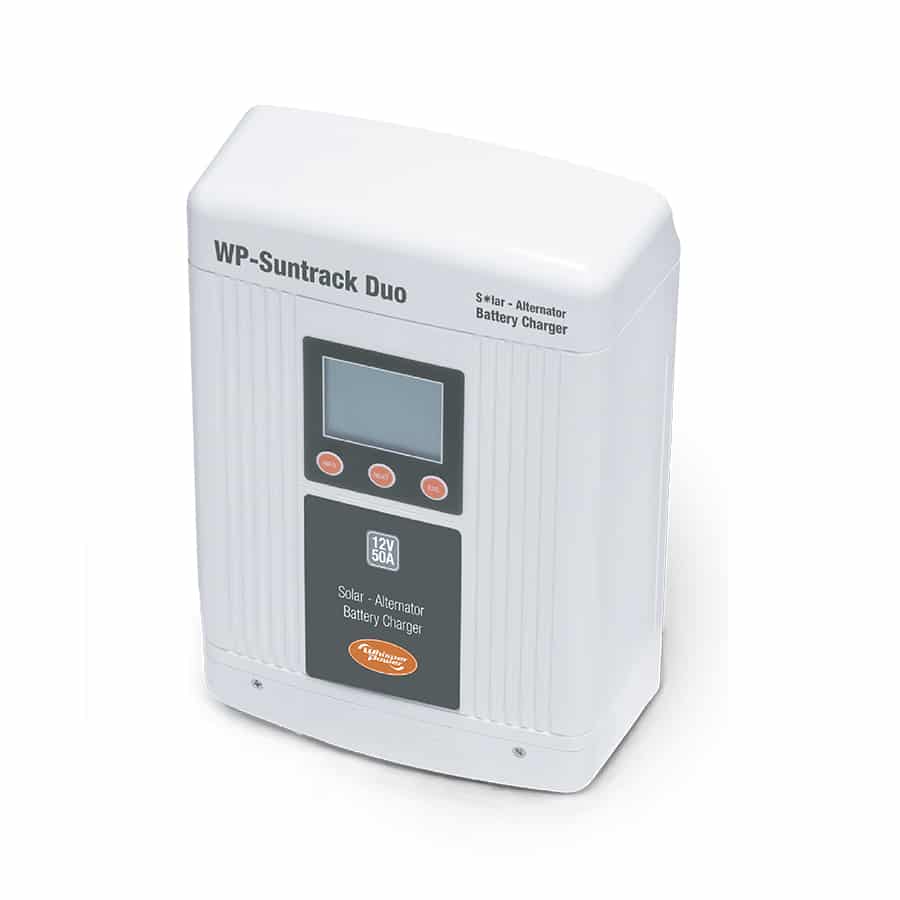

The WhisperPower Suntrack DUO will offer you reliable service for providing a multi-stage, multi-input battery charger to charge the different types of batteries you have installed in either your home, boats, RV caravan, 4WD or commercial vehicle.
| ARTICLE NUMBER |
60111430 |
| OUTPUT RATING | |
| Output Current (Maximum) |
50A |
| Output Voltage |
12V Nominal |
| Output Power |
775W |
| CHARGER DC OUTPUT- HOUSE BATTERY (CH1) | |
| Selectable Battery Type |
GEL, AGM, Flooded, Lithium, Program |
| Bulk /Float Voltage Range | |
| GEL: |
14.4 / 13.7 Vdc |
| AGM: |
14.6 / 13.6 Vdc |
| Flooded: |
14.4 / 13.3 Vdc |
| Lithium: |
13.9 – 14.6 Vdc |
| Program: |
13.8 – 14.8 Vdc |
| Restart Voltage (GEL, AGM, Flooded, Program) |
12.5 Vdc |
| Restart Voltage (Lithium) |
13.3 Vdc |
| Charger Current (User Selectable) |
5-50A ( 5A steps) |
| Equalized Voltage (Flooded Battery only) |
15.5 Vdc |
| Equalized Charging Current |
10% of Bulk Current Setting |
| Charging Control |
GEL, AGM Flooded, Program Mode: Two or Three Stages Lithium: Three Stages only |
| DC Output Bank |
Single |
| Current draw from CH1 with unit ON |
<70mA |
| Current draw from CH1 with Unit OFF |
<200uA |
| Battery Temperature Setting |
Low / Normal / High (automatically overridden with optional BTS) |
| Efficiency |
95% |
| Minimum Operating Voltage |
8.0 Vdc |
| DC INPUT – SOLAR ARRAY/PANELS (CH2- SOLAR) | |
| Input Voltage |
14.5 – 50 Vdc |
| Maximum Solar Input Current |
30A |
| MaximumSolarInputPower: 12VPanel |
500W (600W max) |
| 24V Panel |
750W (800W max) |
| DC INPUT – ALTERNATOR/ START BATTERY (CH3- ALTERNATOR/START) | |
| Input Voltage |
10.5–16.0Vdc/21–32Vdc |
| Maximum Input Current (as per max. setting) |
50A |
| ENVIRONMENTAL AND OPERATING TEMPERATURE | |
| Storage Range |
-40° to 158° F |
| Operating Range |
-4° to 140° F |
| Humidity |
5-95%, RH non-condensing |
| Ingress Protection |
IP32 |
| WEIGHT AND DIMENSIONS | |
| WP-Suntrack Duo 30/50A |
4.07 lbs, 9.52 x 6.77 x 2.91 in |
| REGULATORY COMPLIANCE | |
| Standards/EMC (North America) |
Class B according to FCC part15B and ANSI C63.4 |
| Standards/EMC (European Union) |
CE marked for the EMC directive 2004-108-EC Complying with EN55014-1, EN55014-2, EN61000-3-2 and EN61000-3-3 (as equivalent IEC standards series) |
