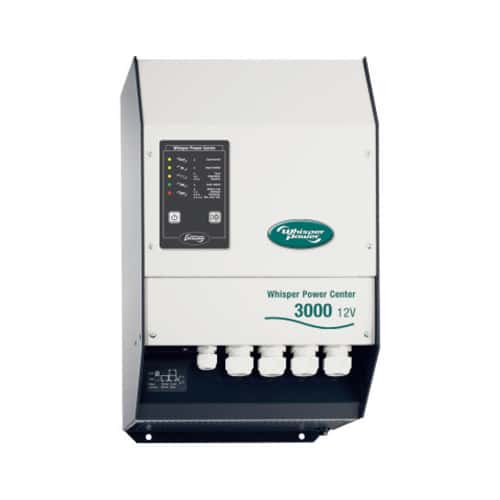

System Combi’s WPC series

$4,149.20

Descriptions

  • PLUG & PLAY
    • Auto start stop connection (see also WPC – BSI)
    • Connection for Temperature Sensor (to be put on battery)
    • WPC Bus interface connection to Remote panel (RCC/ Touch)
    • Connection for RS 232 Data Logger Module
  • SAFETY FIRST
    • Galvanic input to output separation
    • Earth stud
    • Completely protected against overload and over temperature
  • EASY TO INSTALL
    • As standard supplied with 6.5’ of marine grade DC cables
    • Hard wiring connection of all AC & DC connections
    • External holes for wall mounting

Specifications

ARTICLE NUMBER
60201315

WPC 12 V / 3000 VA (7500 VA max) 160 A – 230 V / 50-60 Hz

INVERTER SPECIFICATIONS
Nominal battery voltage

12 VDC

Input voltage range

9.5…17 VDC

Continuous power @ 25°C

2500 VA

Power 30 min. @ 25°C

3000 VA

Power 5 sec. @ 25°C

7500 VA

Maximum load

Up to short-circuit (fully protected)

Maximum a-symmetric load

Up to continuous power

Load detection (stand-by)

2 to 25 W (AES) Automatic Enable System

Power factor

0.1-1

Efficiency (@ full load)

93%

Consumption OFF/Stand-by/ON

1.8 W / 2.1 W / 14 W

Output voltage

Pure sine wave 230 VAC (+/- 2%)

Output frequency

50 Hz – 60 Hz (1) +/- 0.05% (crystal controlled)

Harmonic distortion (voltage)

<2% THD

Overload and short-circuit protection

Automatic disconnection with 3 time restart attempt

Overheat protection

Warning before shut-off with automatic restart

BATTERY CHARGER SPECIFICATIONS
Charge Characteristic

6-step Bulk-Absorption-Floating-Equalization-reduced floating-periodic absorption. Number of steps, thresholds,return amps completely adjustable.

Maximum charging current

160 A

Temperature compensation

With Whisper temperature sensor WPC-BTS

Input voltage range

150 to 250 VAC

Input frequency range

45 to 65 Hz

Input current max. (transfer relay) / Output current max.

50 A / 56 A

Transfer time

<15 ms

GENERAL DATA
Weight [lbs]

75

Dimension wxdxh [in]

19.7 x 11.8 x 9.0

Protection degree

IP21

Color

RAL 9003

Conformity

Directive EMC 2004/108/EC : EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, 62040-2. Low voltage directive 2006/95/EC : EN 62040-1-1, EN 50091-2, EN 60950-1

Operating temperature range

WPC 24V-5000W-140A Sinewave Inverter / Charger ARTICLE NUMBER 60201006 WPC 24/5000 (12000VA max) 140A – 230V / 50-60Hz INVERTER SPECIFICATIONS Nominal battery voltage 24 VDC Input voltage range 19..34 VDC Continuous power @ 25°C 5000 VA Power 30 min. @ 25

Relative humidity (operational)

95% without condensation

Warranty

2 years

Acoustic level

<40dB / <45dB (without/with ventilation)
