WBMModular Smart Shunt

$236.50

Descriptions

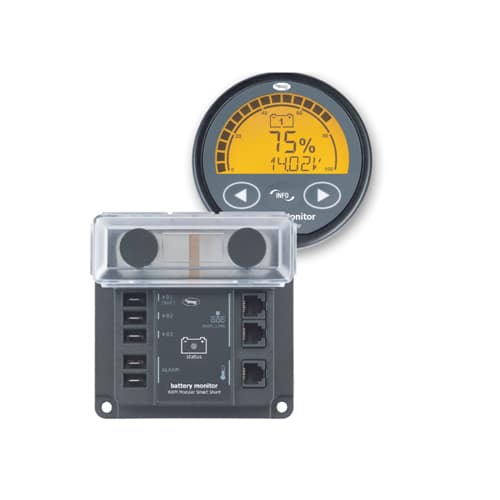

High Precision Battery Monitor

The WBM Modular Smart Shunt help users to get best service life of the battery bank.

  • Optimized footprint for perfect integration with our DC Modular series of high current busbars and fuseholders.
  • Large amount of additional features to optimally supervise your battery system and control external equipment
  • The WBM Modular Smart Shunt is compatible with lead based and Lithium (LiFePO4) based batteries.

Specifications

TECHNICAL SPECIFICATIONS
Supply voltage range

7..70 Vdc

Input voltage range (main battery)

7..70 Vdc

Input current range2)

-600..+600 A

Battery capacity range

10..10000 Ah

Operating temperature range

-22..+158℉

READOUT RESOLUTION
Voltage

± 0.01V (0..70 V)

Current

± 0.01A (0..10 A)

Current

± 0.1A (10..100 A) / ± 1A (100..600 A)

state-of-charge (0..100%)

± 1%

time remaining (0..24hrs)

± 1min

time remaining (24..240hrs)

± 1hr

temperature (-4℉..+122℉)

± 32.9℉

Voltage measurement accuracy

± 0.3%

Current measurement accuracy

± 0.4%

SHUNT DIMENSIONS
footprint [in]

4 x 4

Base height [in]

9

Total height [in]

2.5

weight [oz]

10.2

Display DIMENSION
footprint [in]

Ø 2.5

Base height [in]

Ø 2

Total height [in]

1.4

weight [oz]

2.4

TECHNICAL SPECIFICATIONS
Supply voltage range

7..70 Vdc

Supply current @ 12V

10mA

Supply current @ 24V

6mA

Supply current @ 48V

5mA
