When leaving the marina and heading for the ocean, you are getting fully dependent on your boat electrical system. With Whisper- Power, you are secured electricity is guided into the appropriate conduits which prevents dangerous situations. The WhisperPower DC distribution program offers high quality components ensuring a safe and enjoyable trip.
| ARTICLE NUMBER | |

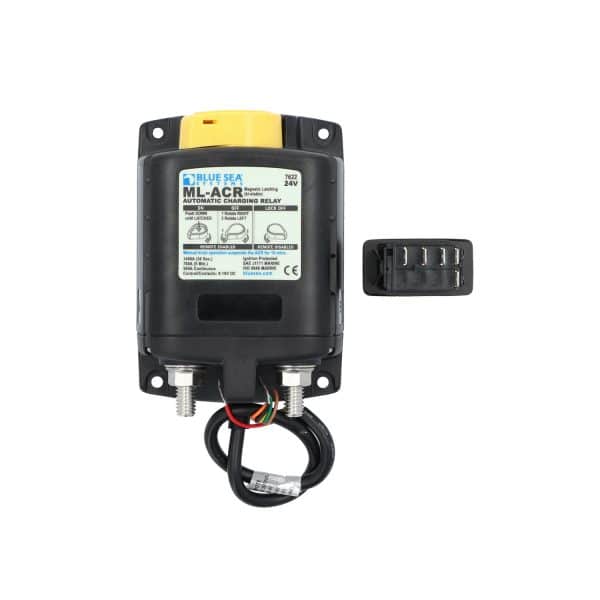

| 50214736 | DC Charging Relay 24 V |
| DIMENSIONS & WEIGHT | |
| Weight (Kg) | 0.8 |
| Enclosure width | 95.25 mm |
| Enclosure height | 138.94 mm |
| Enclouser depth | 51.56 mm |
| GENERAL | |
| Ambient operation temperature | -20°C … +40°C |
| Storage temperature | -25°C … +85°C |
| Operating humidity | 95%, non condens |
| Live current switching | 100.000 cyles |
| MECHANICAL | |
| Connections terminal stud | M10 (3/8”-.16) |
| Connections stud lenght | 23 mm |
| Maximum terminal Stud Torque | 15.5 NM (140 in-lb) |
| Terminal material | tin-plated copper |
| Drilling mounting centers | 114.3mm * 76.20mm |
| Mounting screws | 4 mm |
| Ingress Protection Class | IP66 |
| Enclouser Colour | RAL9011 Graphite Black |
| Calbe clearance | 28.4 mm (1.12”) |
| Ignition Protection | SA J1171 |
| Markings | CE, Iso 8846 |
| INPUT | |
| Battery input | 2 |
| Switch Positions | 2 |
| Manual overide | Locked off/on |
| I 10 Cranking rating 10 sec | 2500A |
| I 60 Cranking rating 1 min | 1100A |
| I 300 Cintermittent rating 5 min | 700A |
| I C continue rating | 500A |
| Vmno Voltage maxium Operation | 32V DC |
| Control Circuit Voltage | 20.2…32.9VDC |
| Operation current continuous | < 40mA |
| Operation current when charging | <7A |
| Remote Control switch when charging | 100mA |
| Automatically combines battery banks when sensed voltage levels are: | Above 27.0 for 30 sec. Above 26.0 for 90 sec. |
| Automatically isolates battery banks when sensed voltage levels are: | Below 19.2V (undervoltage lockout) Below 24.7V for 10 sec. Below 25.5V for 30 sec. Above 32.4V (undervoltage lockout) |
