OctoPower 3

$3,418.50$8,784.90

$4,450.50
$3,418.50
$4,201.10
$7,219.70
$8,784.90

Descriptions

CONTINUOUS ON BOARD AC POWER WITHOUT A GENERATOR

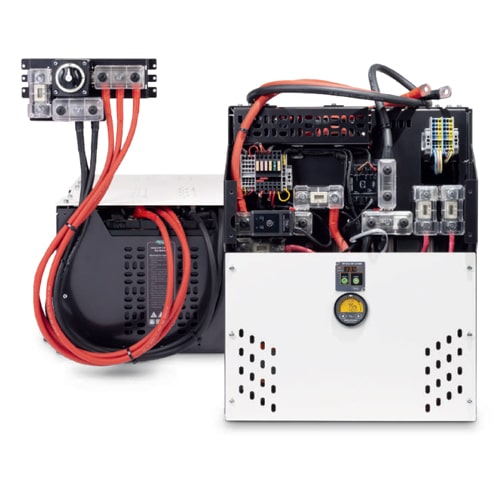

A 3kW Battery-based power system for the provision of AC power (DC power is optional), designed for boats, vehicles and houses. Consists of one power electronics module and one or two Lithium Ion battery packs. All components will have been pre-installed/mounted in our factory.
The OctoPower 3 is supplied as an easy plug and play installation, with connections to: AC power (land/shore) input, solar panel(s) input, connection to outboards or inboard starter battery or vehicle starter battery. The maximum charge power from this source is 1 kW (100 Amps / 12 V or 50 Amps / 24 VDC). There are outlets for 120 VAC 60 Hz output.

OctoPower systems provide Super Inverter electrical power at locations where electrical power is not available as standard.

Battery Storage & Solar/ Power – The heart of the OctoPower system is a durable power storage, made from Lithium Ion or long life lead-acid battery technology, charged by solar and/or windpower.

Super Inverter– Low voltage battery power is now utilised by the Kraken. Super Inverters, ranging from 3 kVA to 32 kVA single or three phase electrical power. The Super Inverter now supplies 120 or 230 volts to the power system.

Super Charger– The Kraken Battery Storage is re-charged by one or more Kraken Super Fast Chargers. Normally this Super Charger is connected to the main (or shore) power. But when main or shore power is not available, we can charge with solar or windpower.

Ultra silent WhisperPower Generator– Back-up power is available from one of the many silenced diesel generators, either with DC or AC output. Power rating from 4.4 kVA – 50 kVA. Perfect system integration.

Monitoring and Control– KrakenCare monitoring and control safeguards a fully controlled and perfectly managed power system.

KEY BENEFITS

  • Eliminating generator and reducing idling on fire apparatus include:
  • Saving fuel costs
  • Lowering emissions and toxic exposure
  • Zero chassis emissions, operating under lithium-ion power
  • Reduction of maintenance costs
  • Extending apparatus life
  • Improved health, safety of firefighters & public

Specifications

OctoPower 3

OctoPower 3 | 12 VDC

Article number

42001210

GENERAL SYSTEM SPECIFICATIONS
Inverter power

3000W

Nominal voltage AC

6000W

Peak power(500ms)

120V optional

Nominal frequency

60Hz optional

Operating temperature

-4℉/+131℉

Derating after 104℉

Charging between 32℉-113℉

AC Nominal Voltage

120V

AC Input Voltage range

90-265V

AC Power consumptionCharger 60A

8,75A

DC Input Voltage ranges
DC Input Voltage range Solar

14,5-50V

DC Power Consumption Solar

Up to 60A

DC optional output

12V

DC SYSTEM SPECIFICATIONS
Battery type

ION Power Basic 2000-4000 cycles

DC voltage

12 VDC

Battery charger output

60 A

Solar charger output MPPT

1 x 50 A – 12 VDC

DC-DC booster / converter

2 x 50 A – 12 VDC = 100 A

Power sharing / DC control

Connectable to

2 Outboard engines, 2 inboards

SINE WAVE INVERTER SPECIFICATIONS Power rating
Model

WP – Sine XFR 12 / 3000

Power rating

0 – 6000 VA Max, 3 kVA cont. at 25 C

Stand-by consumption

1.6 W

93%

Power of transfer switch

3 KW

BATTERY SPECIFICATIONS
Battery chemistry

Lithium ION Basic LiFe Po4

Capacity in kWh (Selectable)

3,8 – 5,1 – 7,6 – 10,2 KWh

Nominal voltage

12 VDC

MONITORING & CONTROL READ OUT
Panel model & size

WBM Battery Monitor – Smart Shunt

Read-out information

DC V/A/Time remaining / SOC

Remote monitoring via UTP / Router / Cell Phone

Bluetooth / App

MECHANICAL SPECIFICATIONS (MODULAR VERSION)
Battery pack size (h x w x d)

11.8 x 19.2 x 28.3 in ( (5,1 kWh)

Power electronics pack size (h x w x d)

10.9 x 18.8 x 23.6 in
