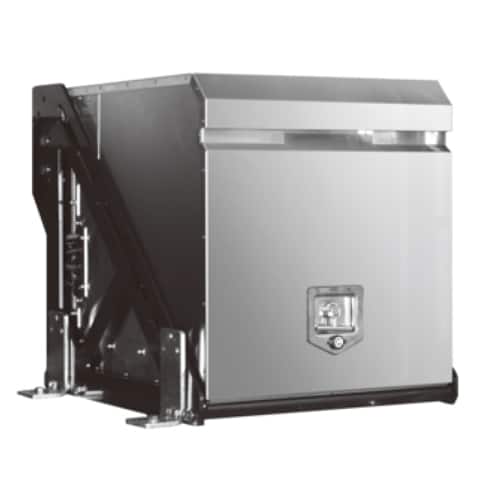

W-GV 8 Elite outdoor

$12,745.20

Descriptions

Engine Features & Protection

  • Low oil pressure shutdown
  • High engine temperature shutdown • Low vibration shock mounts
  • Disposable oil filter
  • Oil drain plug
  • Disposable fuel filter

Alternator Features

  • Aluminium water cooled starter housing
  • Windings are vacuum impregnated with epoxy varnish for dependability and long life.
  • Permanent magnet alternator (PMA).
  • Copper windings ensure minimal heat build-up.
  • Insulation meets standards for class H insulation.
  • Flexible plate connection to the engine, the generator has a single end ball bearing with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.

General Conditions

  • Ventilated environment
  • Operating temperature of 14 °F / + 104 °F
  • Storage temperature of -4 °F / + 158 °F
  • Relative humidity in operations / storage of max 75% RH, no-condensing
  • 2-cylinder Permanent Magnet generator with external PMG box (power module)
  • Excellent choice to replace traditional gensets
  • 8 kVA (6 kW) continuous 120 V power from your programmable speed generator system
  • High efficiency and strong peak power
  • Outstanding voltage stability and a pure sine wave
  • Saving fuel and ensuring smooth running of your genset
  • Genverter Power, the best choice for your energy supply

Specifications

ARTICLE NUMBER
44005420

Elite Outdoor 8 – 120 V / 60 HZ

MAIN SPECIFICATIONS
System output

8 kVA / 6kW

Intermittent Power kW at 25ºC (77ºF)

6.4 kW

Continuous Power kVA at 25ºC (77ºF)

8 kVA

Continuous Power kW at 25ºC (77ºF)

6 kW

Noise level

59 dB(A) at 7 m, 77 dB(A) at 1 m

Phase/wire

1 phase,3 wires

Inverter Module

WP-PMG frame 2

Output voltage / frequency

120 V, 60 Hz

Harmonic distortion

<3%

Parallel operation

Yes

ALTERNATOR SPECIFICATIONS
Type

Permanent Magnet Alternator (PMA)

RPM range

2200 .. 2800 rpm

Efficiency 94%
SPECIFICATIONS DIESEL ENGINE
Engine

Kubota Z482

Number of cylinders 2
Capacity

479 cc

Engine cooling

Radiator cooling

Fuel consumption

1.2 – 2.5 l/hr

Starting

Electrical – 12 Volt

Starter battery

12 V / 80 Ah (optional)

12V Alternator

Included

DIMENSIONS & WEIGHT
Weight(lb.)

440

Depth(in.) incl. suspension frame

29.2

Depth (in.) incl. exhaust

33

Width (in.)incl suspension frame

23.5

Width (in.) incl. exhaust

25.2

Height (in.) incl. suspension frame

26.38

Dry Exhaust pipe

Ø 1 inch BSP (prefitted exhaust system optional)

Location oil refill cap

Top & side

Max. operating angle

25º in all directions
