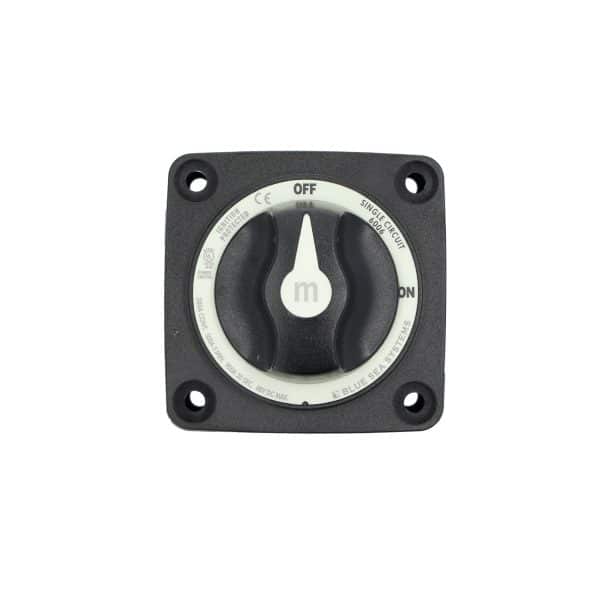

DC Switch 300A single circuit Battery

Descriptions

When leaving the marina and heading for the ocean, you are getting fully dependent on your boat electrical system. With Whisper- Power, you are secured electricity is guided into the appropriate conduits which prevents dangerous situations. The WhisperPower DC distribution program offers high quality components ensuring a safe and enjoyable trip.

Specifications

ARTICLE NUMBER
50214701 DC Switch 300 A single circuit
DIMENSIONS & WEIGHT
Enclosure width 72 mm
Enclosure height 78 mm
Weight (Kg) 0.28
GENERAL
Ambient operation temperature -20 C … +40C
Storage temperature -25 C … +85C
Operating humidity 95%, non condens
MECHANICAL
Connections terminal stud M10 (3/8”-.16)
Connections stud lenght 22 mm
Maximum terminal Stud Torque 13.56 NM (120 in-lb)
Terminal material tin-plated copper
Drilling mounting centers 55 mm
Rear panel mount diameter 59 mm dia
Mounting srews 10 mm
Ingress Protection Class IP66
Enclouser Colour RAL9011 Graphite Black
Calbe clearance 28 mm (1.12”)
Ignition Protection Ul 1500 SAE J1171
Markings CE, Iso 8846
INPUT
Battery input 1
Switch Posistions 2
Battery combine function
I 10 Cranking rating 10 sec 1500 A
I 60 Cranking rating 1 min 775 A
I 300 Cintermittent rating 5 min 500 A
I C continue rating 300 A
Vmno Voltage maxium Operation 48VDC
