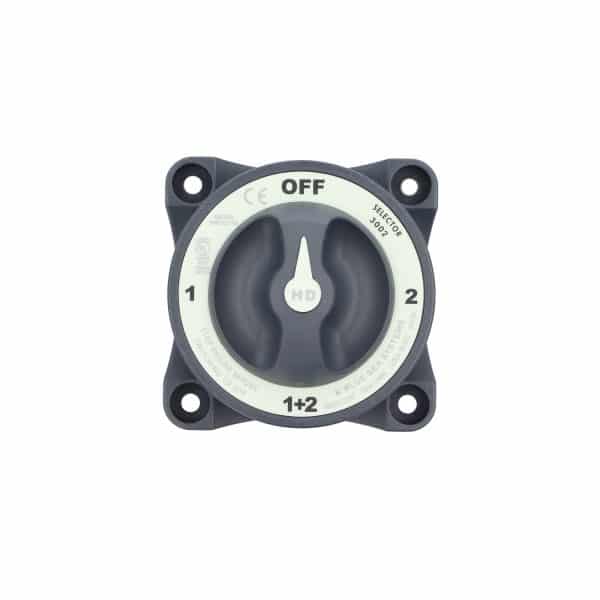

DC Switch 600A selector 4 pos


When leaving the marina and heading for the ocean, you are getting fully dependent on your boat electrical system. With Whisper- Power, you are secured electricity is guided into the appropriate conduits which prevents dangerous situations. The WhisperPower DC distribution program offers high quality components ensuring a safe and enjoyable trip.


50214711 DC Switch 600 A selector 4 pos
Weight (Kg) 0.59
Enclosure width 98 mm
Enclosure height 79 mm
Ambient operation temperature -20 C … +40C
Storage temperature -25 C … +85C
Operating humidity 95%, non condens
Connections terminal stud M12 1/2”)
Connections stud lenght 22mm
Maximum terminal Stud Torque 24.86 NM (220 in-lb)
Terminal material tin-plated copper
Drilling mounting centers 76 mm
Rear panel mount diameter 92mm dia
Mounting screws m6 screw
Ingress Protection Class IP67
Enclouser Colour RAL7024 Graphite Grey
Calbe clearance 27.9 mm
Ignition Protection Ul 1500 SAE J1170
Markings CE, Iso 8846
Model type Manual battery switch
Circuit type selector 4 pos
Battery input 2
Switch Positions 4
Battery combine function yes
I 10 Cranking rating 10 sec 2750A
I 60 Cranking rating 1 min 1150A
I 300 Cintermittent rating 5 min 700A
I C continue rating 500A
Vmno Voltage maxium Operation 32V DC
